Motor to Main Power Cable 9 Pin main cable for electric bike

NameLarge 9 Pin motor cableLarge 9 cores motor cable
ModelWYT-P-915AT
Inlet/Outlet9 cores
Rated voltage60V AC/DC
Rated currentpower 20A, signal 2A
Withstand voltage500V
Insulation resistance≥20MΩ
Contact resistance≤10mΩ
Mechanical life200 times
Insertion force≤100N
Pull out force≥50N
Working temperature-25℃~+85℃
Protection gradeIP66
Dimensionsmale 14.9mm, female 18.5mm
Overalllength85mm
Contact element materialgold-plating Copper alloy
Wire specification2.0mm²+0.20mm²
TAGS Motor cable bafang connector

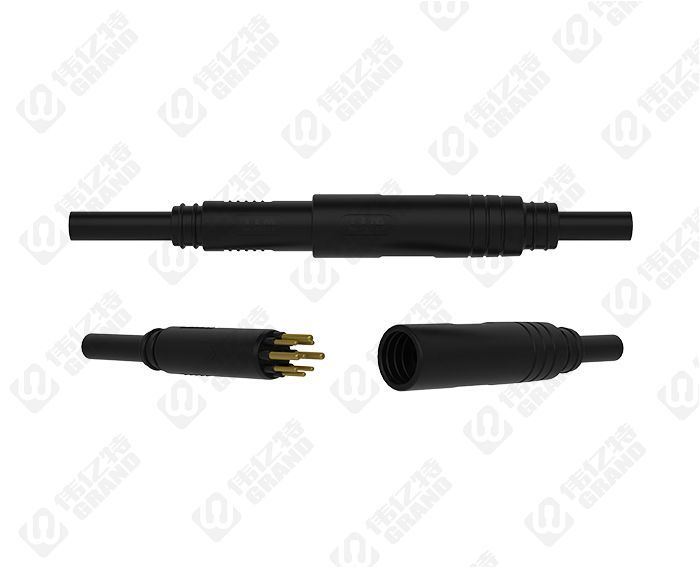

RELATED PRODUCTS
