Choosing the Right Type of E-bike Connectors and Cables

Choosing the right connector type is a critical decision, especially if you're not familiar with ebikes. Basically, all ebike components run around the controller, which means that the component connector type depends on the type of motor connector your controller has or is compatible with.

Components such as the ebike's throttle, motor, display, brake lever, and pedal assist system (PAS) all come with some type of connector. Regular non-waterproof connectors connect directly to the ebike controller, while waterproof conversion kits or e-bikes require a 1T4 main harness cable, which simultaneously makes the process easier and more user-friendly.

Motor to Main Power Cable 9 Pin main cable for electric bike

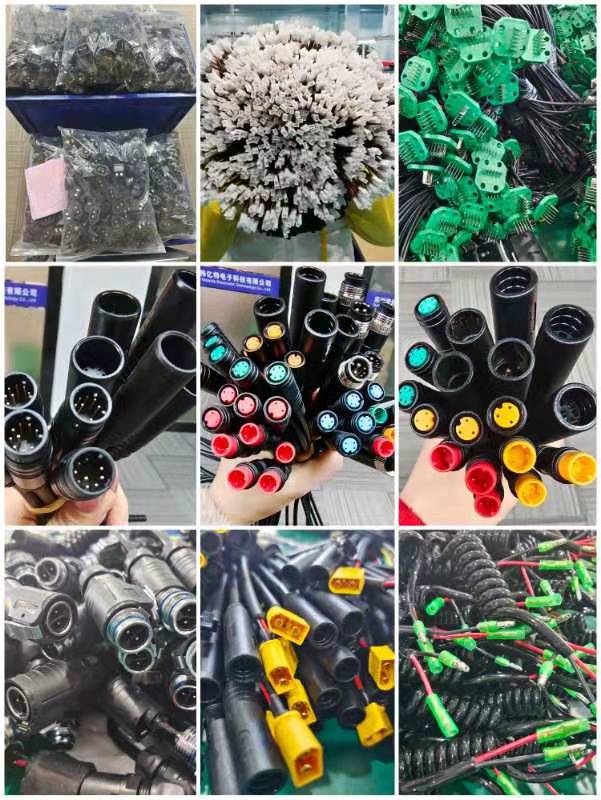

There are two most common types of ebike connectors on the market.

-The non-waterproof JST-SM connector.

As mentioned above, this connector type is not waterproof. The connectors have 2 to 8 pins, depending on the component. However, this does not mean that all JST-SM connectors are standardized and always compatible with each other. For example, some controllers may have a 4 or 6-pin display connector, while most controllers on the market have a 5-pin LED/LCD display connector. So this important detail is another point you should be aware of when choosing a display or controller for your e-bike.

Waterproof Julet Type / HiGo Connectors.

These connectors consist of 2 main cables.

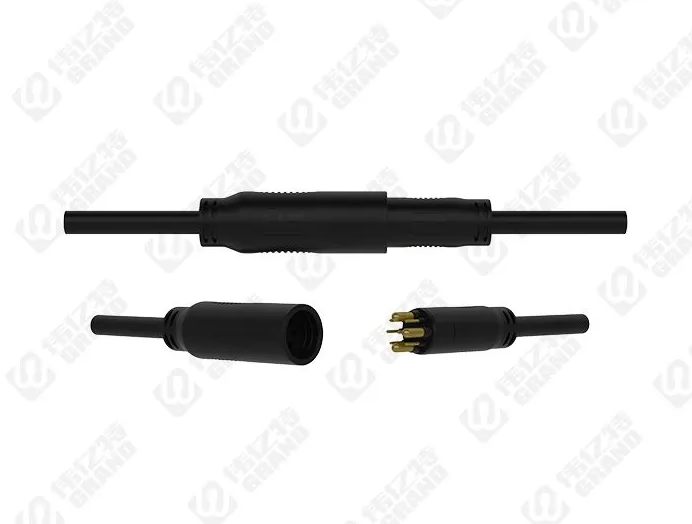

1. 9-pin motor connector that connects the motor to the controller.

2. 8-pin 1T4 (meaning the cable is split into 4 connectors) main harness cable for connecting components (brake lever, throttle and display).

Controllers with Julet type connectors typically have 5 connectors.

1. Power/battery connector (red and black).

2. 9-pin motor connector.

3. 8-pin 1T4 main harness/signal connector.

4. Pedal Assist (PAS) connector (orange).

5. Headlight connector (red).
