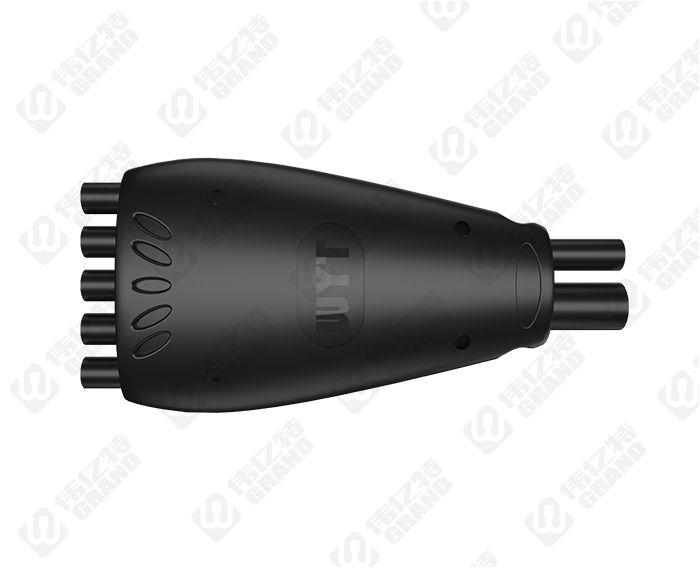

Electric Bicycle E-bike Integration Cable Waterproof 1 To 5 2 to 5

Name	splitter cable
Model	WYT-WY1T5, 2T5
Inlet/Outlet	1Core/5cores; 2cores /5 cores
Rated voltage	48V AC/DC
Rated current	2A
Withstand voltage	250V
Insulation resistance	≥20MΩ
Contact resistance	≤10mΩ
Working temperature	-25℃～+85℃
Protection grade	IP66
overall dimension	52*32mm

RATINGS/CHARACTERISTICS

• UL Recognized

• RoHS Compliant

• 48 V

• 2 to 6 Pins

•


MATERIAL

FEATURES

Most common signal connector, signal cable for Electric bike.

Lenght: can be any length needed.

Current: 2A

Life: 200 times

ENVIRONMENTS

• Ebike controller

• 1T5 or 2T5
